Flight Delay EDA Plots (from enriched parquet)

from pathlib import Path
import polars as pl
import matplotlib.pyplot as plt
import polars as pl

BASE_DIR = Path.cwd()
PARQUET_PATH = "/home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/data_pipeline/outputs/enriched_flights_filtered.parquet"

OUT_DIR = BASE_DIR / "plots"
OUT_DIR.mkdir(exist_ok=True)

PARQUET_PATH, OUT_DIR

df = pl.read_parquet(PARQUET_PATH)

df.head()

shape: (5, 91)

FlightDate	Tail_Number	Origin	OriginState	OriginStateFips	OriginWac	Dest	DestState	DestStateFips	DestWac	CRSDepTime	DepTime	DepDelay	DepDelayMinutes	DepDel15	DepartureDelayGroups	CRSArrTime	ArrTime	ArrDelay	ArrDelayMinutes	ArrDel15	ArrivalDelayGroups	TaxiOut	WheelsOff	WheelsOn	TaxiIn	Cancelled	CancellationCode	Diverted	CRSElapsedTime	ActualElapsedTime	AirTime	Flights	Distance	DistanceGroup	CarrierDelay	WeatherDelay	…	dep_ice_accretion_6hr	dep_peak_wind_gust	dep_peak_wind_drct	dep_peak_wind_time	dep_weather_severity	dep_wx_intensity	dep_wx_has_ra	dep_wx_has_ts	dep_wx_has_sn	dep_wx_has_fg	dep_wx_has_br	dep_wx_has_hz	arr_drct	arr_sknt	arr_p01i	arr_vsby	arr_gust	arr_wxcodes	arr_ice_accretion_1hr	arr_ice_accretion_3hr	arr_ice_accretion_6hr	arr_peak_wind_gust	arr_peak_wind_drct	arr_peak_wind_time	arr_weather_severity	arr_wx_intensity	arr_wx_has_ra	arr_wx_has_ts	arr_wx_has_sn	arr_wx_has_fg	arr_wx_has_br	arr_wx_has_hz	icao24	aircraft_model	aircraft_type	weight_category	num_seats
str	str	str	str	i64	i64	str	str	i64	i64	i64	str	str	str	str	str	i64	str	str	str	str	str	str	str	str	str	i64	str	i64	i64	str	str	i64	i64	i64	str	str	…	str	str	str	str	f64	str	bool	bool	bool	bool	bool	bool	f64	f64	f64	f64	f64	str	str	str	str	str	str	str	f64	str	bool	bool	bool	bool	bool	bool	str	str	str	str	str
"2019-04-19"	"N111US"	"CLT"	"NC"	37	36	"BWI"	"MD"	24	35	1314	"NA"	"NA"	"NA"	"NA"	"NA"	1442	"NA"	"NA"	"NA"	"NA"	"NA"	"NA"	"NA"	"NA"	"NA"	1	"B"	0	88	"NA"	"NA"	1	361	2	"NA"	"NA"	…	null	null	null	null	0.0	"M"	false	false	false	false	false	false	null	null	null	null	null	null	null	null	null	null	null	null	0.0	"M"	false	false	false	false	false	false	"a031bd"	"A320-214"	"Fixed wing multi engine"	"20,000 and over."	"182.0"
"2019-01-05"	"N111US"	"CLT"	"NC"	37	36	"BWI"	"MD"	24	35	2051	"2114"	"23"	"23"	"1"	"1"	2212	"2233"	"21"	"21"	"1"	"1"	"16"	"2130"	"2227"	"6"	0	"NA"	0	81	"79"	"57"	1	361	2	"0"	"0"	…	null	null	null	null	0.0	"M"	false	false	false	false	false	false	80.0	6.0	0.0	10.0	null	""	null	null	null	null	null	null	1.2	"M"	false	false	false	false	false	false	"a031bd"	"A320-214"	"Fixed wing multi engine"	"20,000 and over."	"182.0"
"2019-01-20"	"N111US"	"CLT"	"NC"	37	36	"BWI"	"MD"	24	35	941	"0945"	"4"	"4"	"0"	"0"	1117	"1048"	"-29"	"0"	"0"	"-2"	"9"	"0954"	"1043"	"5"	0	"NA"	0	96	"63"	"49"	1	361	2	"NA"	"NA"	…	null	null	null	null	0.0	"M"	false	false	false	false	false	false	null	6.0	0.0	9.0	null	""	null	null	null	null	null	null	1.3	"M"	false	false	false	false	false	false	"a031bd"	"A320-214"	"Fixed wing multi engine"	"20,000 and over."	"182.0"
"2019-01-29"	"N111US"	"CLT"	"NC"	37	36	"BWI"	"MD"	24	35	1130	"1123"	"-7"	"0"	"0"	"-1"	1256	"1234"	"-22"	"0"	"0"	"-2"	"9"	"1132"	"1227"	"7"	0	"NA"	0	86	"71"	"55"	1	361	2	"NA"	"NA"	…	null	null	null	null	0.0	"M"	false	false	false	false	false	false	null	6.0	0.0	9.0	null	""	null	null	null	null	null	null	1.3	"M"	false	false	false	false	false	false	"a031bd"	"A320-214"	"Fixed wing multi engine"	"20,000 and over."	"182.0"
"2019-02-22"	"N111US"	"CLT"	"NC"	37	36	"BWI"	"MD"	24	35	1130	"1126"	"-4"	"0"	"0"	"-1"	1259	"1238"	"-21"	"0"	"0"	"-2"	"13"	"1139"	"1232"	"6"	0	"NA"	0	89	"72"	"53"	1	361	2	"NA"	"NA"	…	null	null	null	null	0.0	"M"	false	false	false	false	false	false	320.0	12.0	0.0	10.0	24.0	""	null	null	null	null	null	null	0.4	"M"	false	false	false	false	false	false	"a031bd"	"A320-214"	"Fixed wing multi engine"	"20,000 and over."	"182.0"

BASE_DIR = Path.cwd()
PARQUET_PATH = "/home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/data_pipeline/data/final/bts_weather_faa_filtered_all_years.parquet"
OUT_DIR = BASE_DIR / "plots"
OUT_DIR.mkdir(exist_ok=True)

PARQUET_PATH, OUT_DIR

df = pl.read_parquet(PARQUET_PATH)
df.write_csv("/home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/data_pipeline/outputs/bts_weather_faa_filtered_all_years.csv")

# --------------------------------------------------
# FEATURE GROUPS
# --------------------------------------------------

flight_id_cols = [
    "FlightDate",
    "Tail_Number",
    "icao24",
]

route_cols = [
    "Origin",
    "OriginState",
    "OriginStateFips",
    "OriginWac",
    "Dest",
    "DestState",
    "DestStateFips",
    "DestWac",
]

scheduled_time_cols = [
    "CRSDepTime",
    "CRSArrTime",
    "CRSElapsedTime",
    "dep_ts_sched",
    "arr_ts_sched",
]

actual_time_cols = [
    "DepTime",
    "ArrTime",
    "dep_ts_actual",
    "arr_ts_actual",
    "act_arr_date",
]

departure_delay_cols = [
    "DepDelay",
    "DepDelayMinutes",
    "DepDel15",
    "DepartureDelayGroups",
]

arrival_delay_cols = [
    "ArrDelay",
    "ArrDelayMinutes",
    "ArrDel15",
    "ArrivalDelayGroups",
]

flight_phase_cols = [
    "TaxiOut",
    "WheelsOff",
    "WheelsOn",
    "TaxiIn",
    "AirTime",
    "ActualElapsedTime",
]

flight_status_cols = [
    "Cancelled",
    "CancellationCode",
    "Diverted",
]

delay_cause_cols = [
    "CarrierDelay",
    "WeatherDelay",
    "NASDelay",
    "SecurityDelay",
    "LateAircraftDelay",
]

distance_cols = [
    "Flights",
    "Distance",
    "DistanceGroup",
]

weather_time_cols = [
    "crs_arr_date",
]

dep_weather_cols = [
    "dep_drct",
    "dep_sknt",
    "dep_p01i",
    "dep_vsby",
    "dep_gust",
    "dep_wxcodes",
    "dep_ice_accretion_1hr",
    "dep_ice_accretion_3hr",
    "dep_ice_accretion_6hr",
    "dep_peak_wind_gust",
    "dep_peak_wind_drct",
    "dep_peak_wind_time",
    "dep_weather_severity",
    "dep_wx_intensity",
    "dep_wx_has_ra",
    "dep_wx_has_ts",
    "dep_wx_has_sn",
    "dep_wx_has_fg",
    "dep_wx_has_br",
    "dep_wx_has_hz",
]

arr_weather_cols = [
    "arr_drct",
    "arr_sknt",
    "arr_p01i",
    "arr_vsby",
    "arr_gust",
    "arr_wxcodes",
    "arr_ice_accretion_1hr",
    "arr_ice_accretion_3hr",
    "arr_ice_accretion_6hr",
    "arr_peak_wind_gust",
    "arr_peak_wind_drct",
    "arr_peak_wind_time",
    "arr_weather_severity",
    "arr_wx_intensity",
    "arr_wx_has_ra",
    "arr_wx_has_ts",
    "arr_wx_has_sn",
    "arr_wx_has_fg",
    "arr_wx_has_br",
    "arr_wx_has_hz",
]

aircraft_cols = [
    "aircraft_model",
    "aircraft_type",
    "weight_category",
    "num_seats",
]


# --------------------------------------------------
# MASTER FEATURE DICTIONARY
# --------------------------------------------------

FEATURE_GROUPS = {
    "flight_ids": flight_id_cols,
    "route": route_cols,
    "scheduled_times": scheduled_time_cols,
    "actual_times": actual_time_cols,
    "departure_delay": departure_delay_cols,
    "arrival_delay": arrival_delay_cols,
    "flight_phase": flight_phase_cols,
    "flight_status": flight_status_cols,
    "delay_causes": delay_cause_cols,
    "distance": distance_cols,
    "weather_time": weather_time_cols,
    "dep_weather": dep_weather_cols,
    "arr_weather": arr_weather_cols,
    "aircraft": aircraft_cols,
}

Delay Groups

Delay Group	Meaning
-2	< -15 minutes early
-1	-15 to -1 minutes
0	on time
1	1–14 minutes late
2	15–29 minutes
3	30–44 minutes
4	45–59 minutes
5	60–74 minutes
6	75–89 minutes
7	90–104 minutes
8	105–119 minutes
9	120+ minutes

import polars as pl
import matplotlib.pyplot as plt

# ------------------------------------------------
# Prepare data
# Assumes df has: FlightDate, Origin, Dest,
# DepartureDelayGroups, ArrivalDelayGroups
# ------------------------------------------------
d = (
    df.select([
        "FlightDate",
        "Origin",
        "Dest",
        "DepartureDelayGroups",
        "ArrivalDelayGroups"
    ])
    .drop_nulls()
    .with_columns([
        pl.col("FlightDate").str.strptime(pl.Date, strict=False).alias("FlightDate_parsed")
    ])
    .with_columns([
        pl.col("FlightDate_parsed").dt.year().alias("Year"),
        (pl.col("Origin") + pl.lit(" -> ") + pl.col("Dest")).alias("Route")
    ])
    .drop("FlightDate_parsed")
)

# ------------------------------------------------
# Count frequencies by Year + Route + Delay Group
# ------------------------------------------------
dep_counts = (
    d.group_by(["Year", "Route", "DepartureDelayGroups"])
     .count()
     .sort(["Year", "Route", "DepartureDelayGroups"])
)

arr_counts = (
    d.group_by(["Year", "Route", "ArrivalDelayGroups"])
     .count()
     .sort(["Year", "Route", "ArrivalDelayGroups"])
)

# ------------------------------------------------
# Get all year-route combinations
# ------------------------------------------------
year_routes = (
    d.select(["Year", "Route"])
     .unique()
     .sort(["Year", "Route"])
     .to_dicts()
)

# ------------------------------------------------

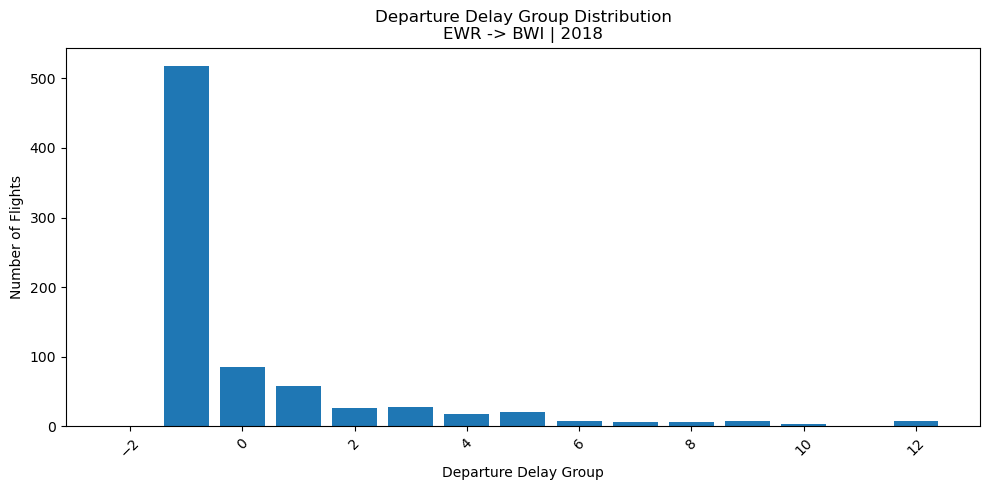

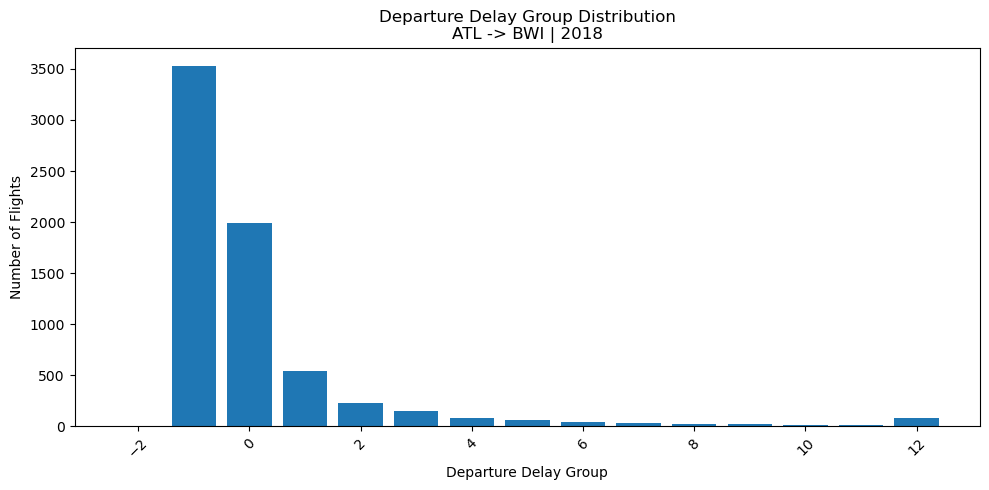

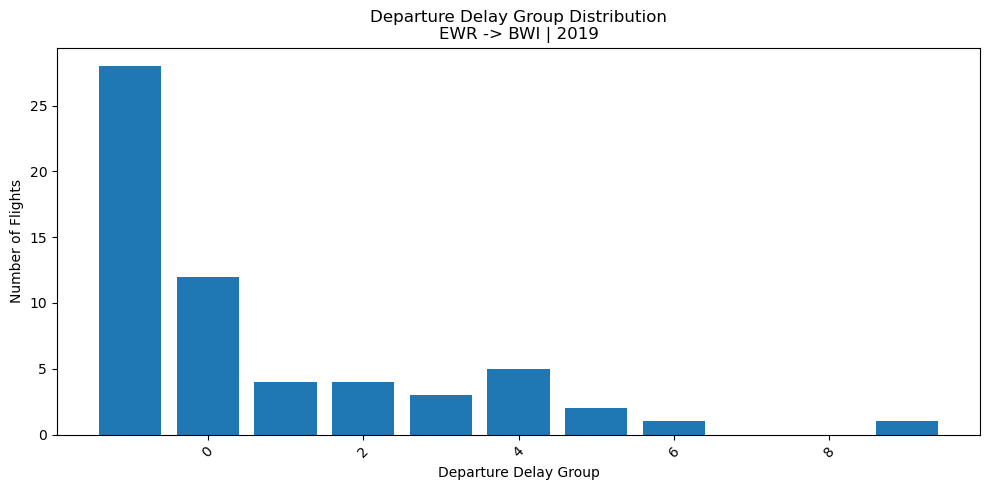

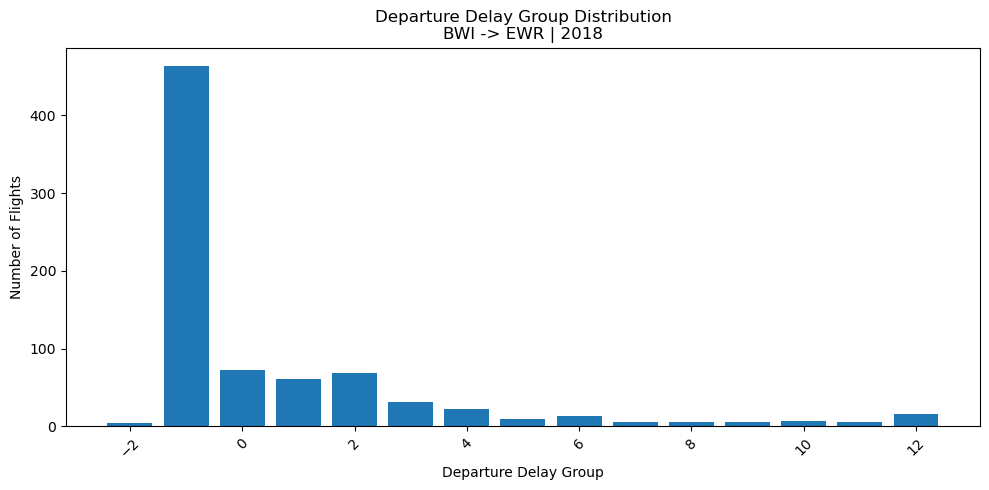

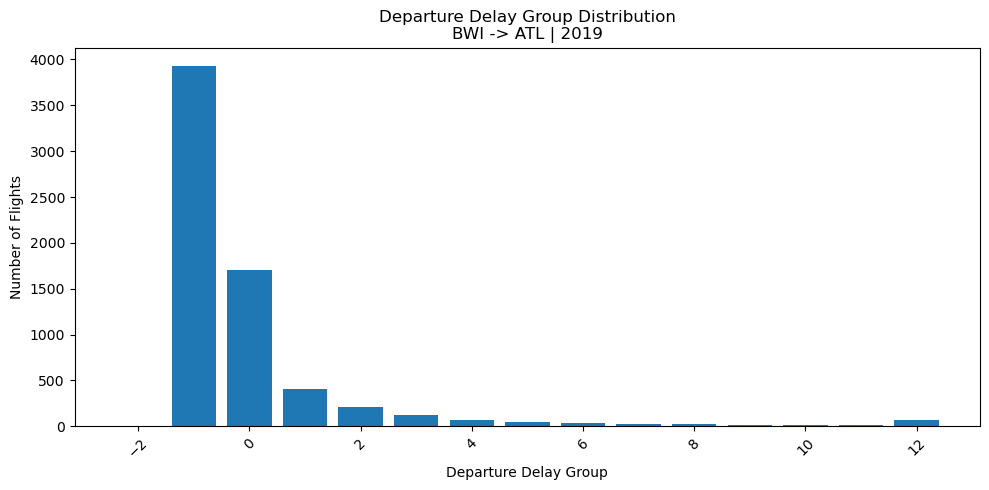

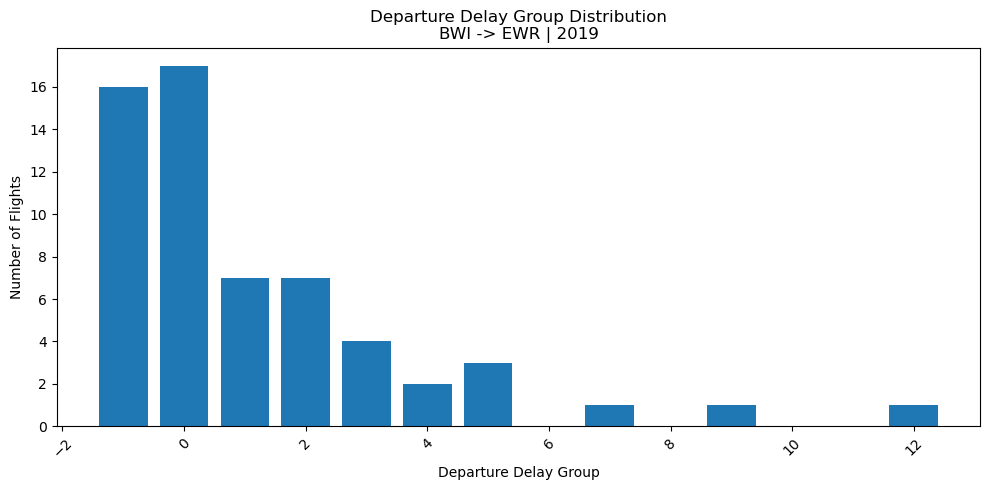

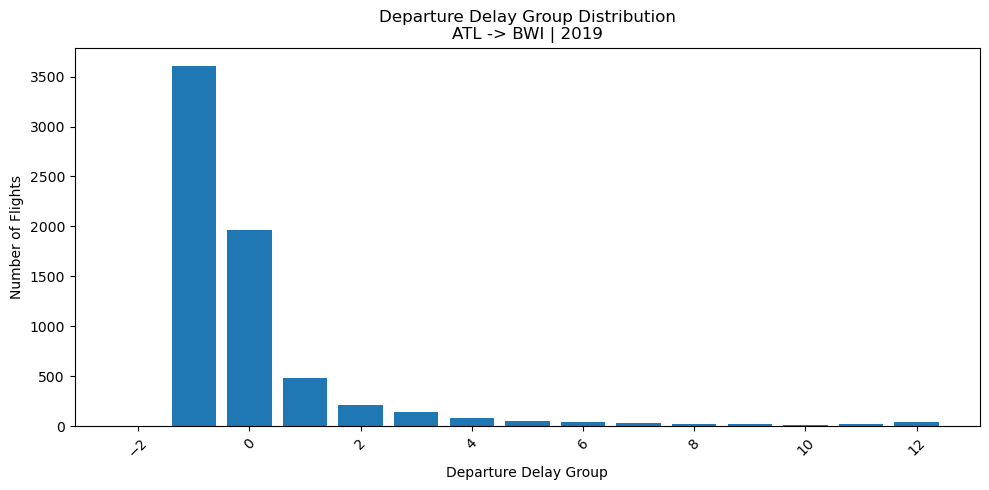

# Plot Departure Delay Groups for each Year + Route
# ------------------------------------------------
for yr_rt in year_routes:
    year = yr_rt["Year"]
    route = yr_rt["Route"]

    dep_subset = (
        dep_counts
        .filter(
            (pl.col("Year") == year) &
            (pl.col("Route") == route)
        )
        .sort("DepartureDelayGroups")
    )

    if dep_subset.height > 0:
        dep_pd = dep_subset.to_pandas()

        plt.figure(figsize=(10, 5))
        plt.bar(dep_pd["DepartureDelayGroups"], dep_pd["count"])
        plt.title(f"Departure Delay Group Distribution\n{route} | {year}")
        plt.xlabel("Departure Delay Group")
        plt.ylabel("Number of Flights")
        plt.xticks(rotation=45)
        plt.tight_layout()
        plt.show()

# ------------------------------------------------

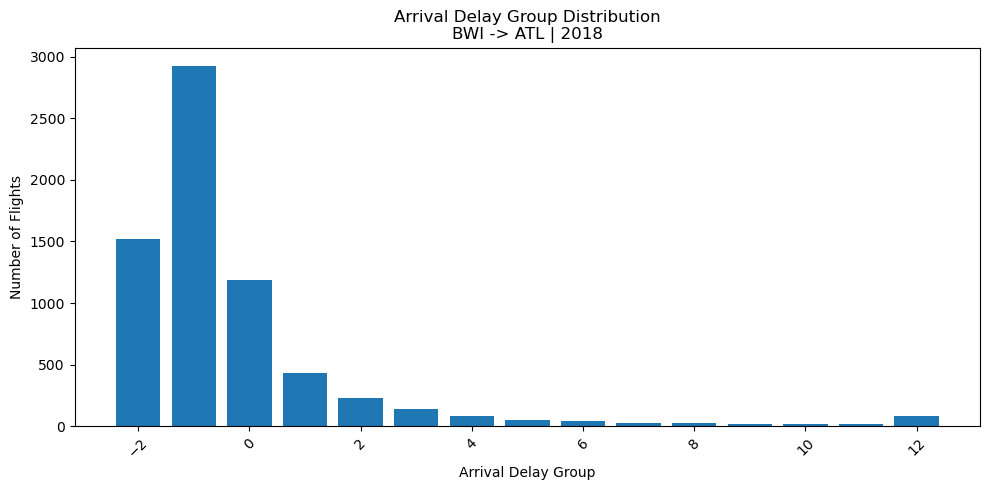

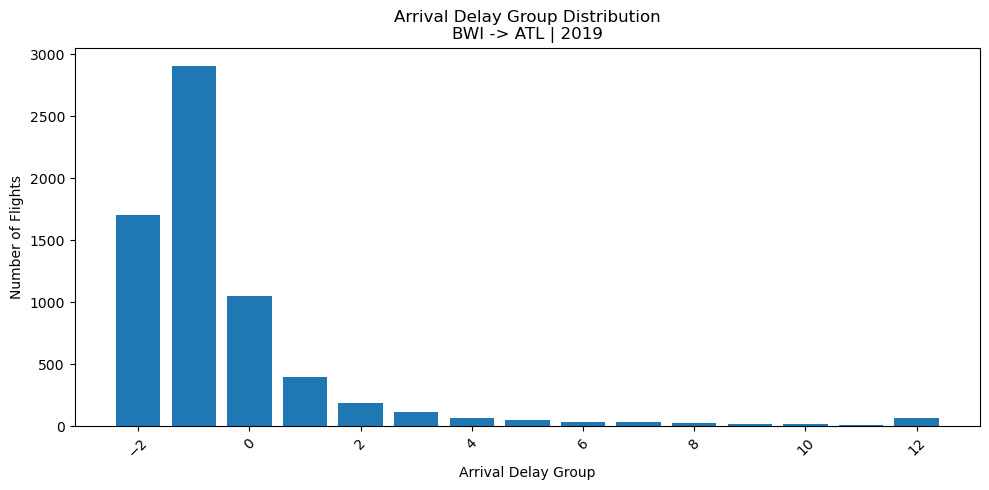

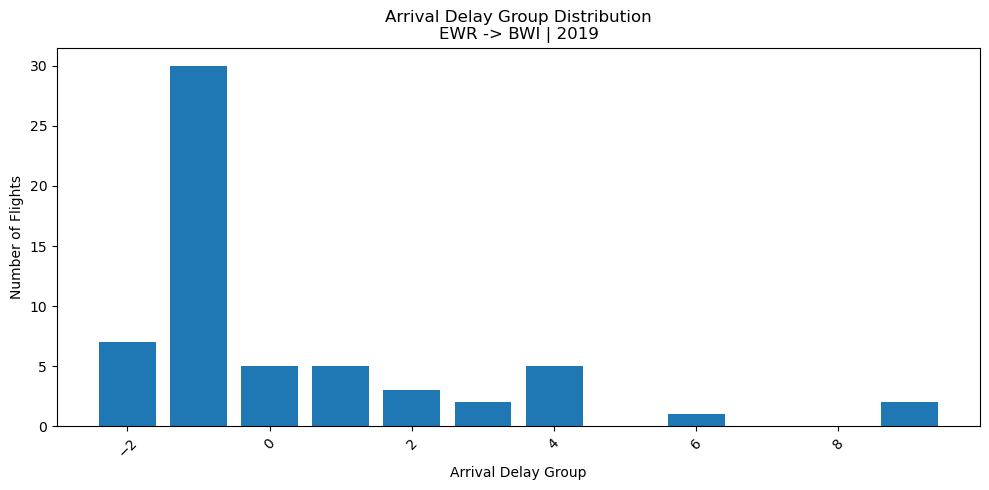

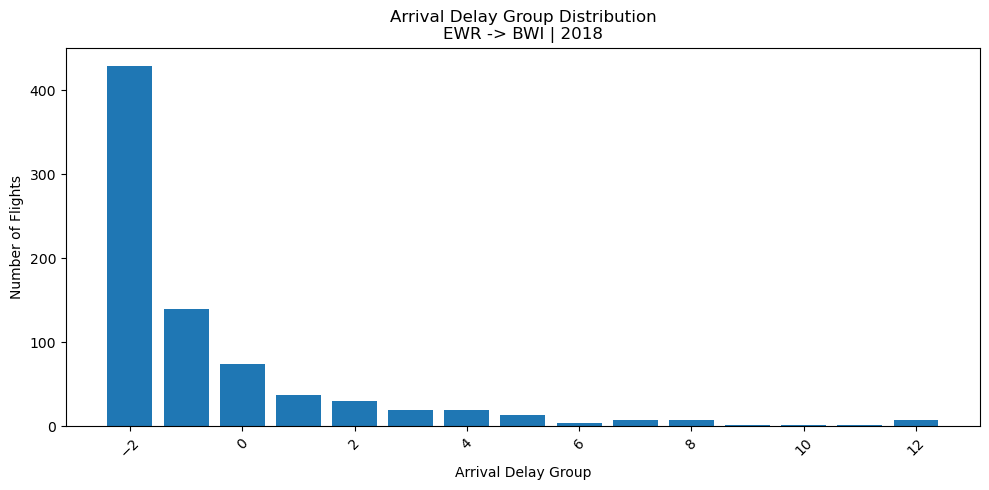

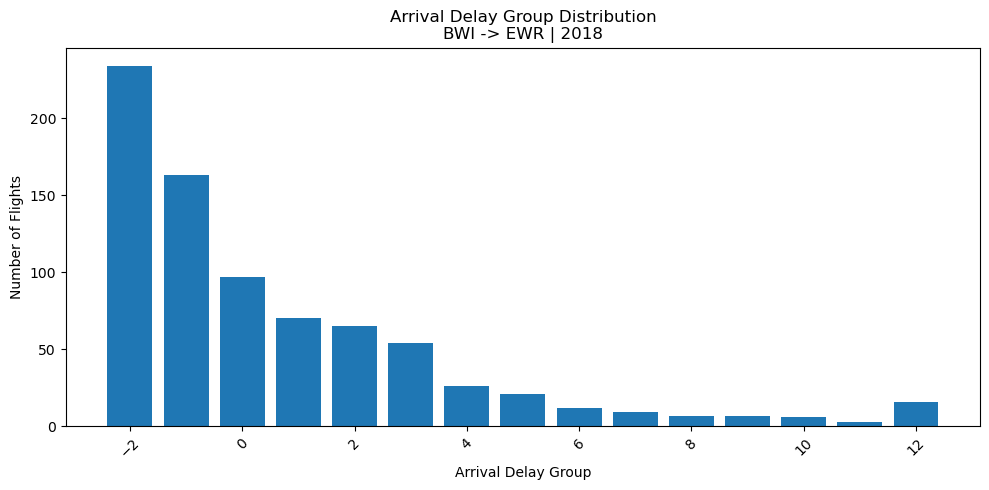

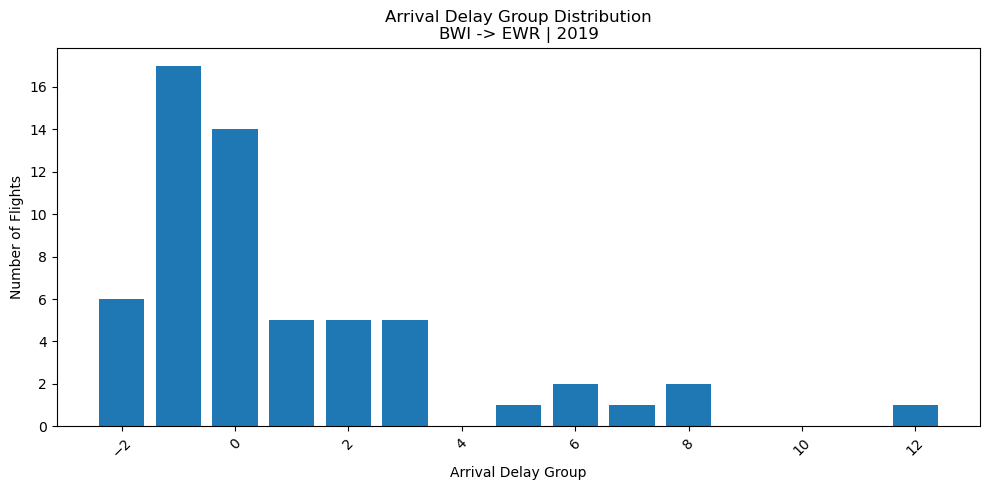

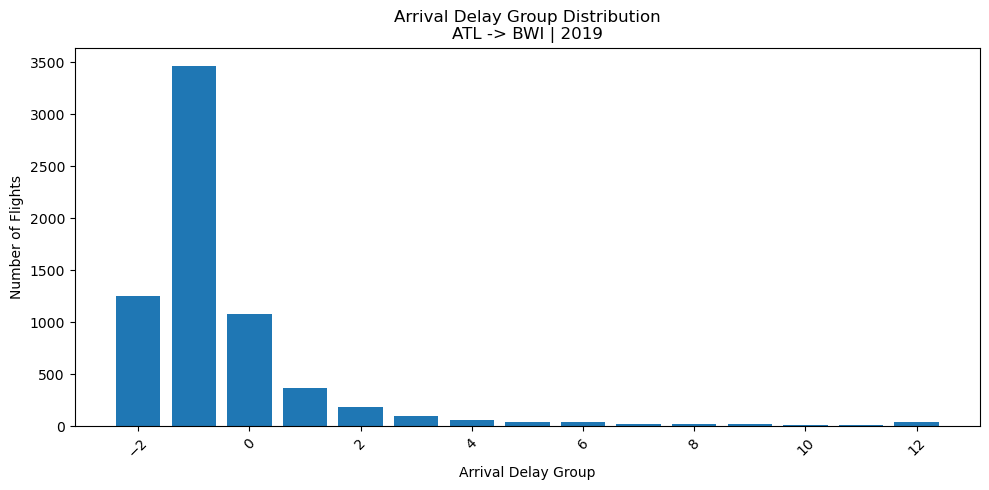

# Plot Arrival Delay Groups for each Year + Route
# ------------------------------------------------
for yr_rt in year_routes:
    year = yr_rt["Year"]
    route = yr_rt["Route"]

    arr_subset = (
        arr_counts
        .filter(
            (pl.col("Year") == year) &
            (pl.col("Route") == route)
        )
        .sort("ArrivalDelayGroups")
    )

    if arr_subset.height > 0:
        arr_pd = arr_subset.to_pandas()

        plt.figure(figsize=(10, 5))
        plt.bar(arr_pd["ArrivalDelayGroups"], arr_pd["count"])
        plt.title(f"Arrival Delay Group Distribution\n{route} | {year}")
        plt.xlabel("Arrival Delay Group")
        plt.ylabel("Number of Flights")
        plt.xticks(rotation=45)
        plt.tight_layout()
        plt.show()

/tmp/ipykernel_73374/1810928616.py:33: DeprecationWarning: `GroupBy.count` was renamed; use `GroupBy.len` instead
  .count()
/tmp/ipykernel_73374/1810928616.py:39: DeprecationWarning: `GroupBy.count` was renamed; use `GroupBy.len` instead
  .count()

import polars as pl

# ------------------------------------------------
# Prepare data
# ------------------------------------------------
d = (
    df.select([
        "FlightDate",
        "Origin",
        "Dest",
        "DepDelayMinutes",
        "ArrDelayMinutes",
    ])
    .with_columns([
        pl.col("FlightDate").str.strptime(pl.Date, strict=False).alias("FlightDate_parsed")
    ])
    .with_columns([
        pl.col("FlightDate_parsed").dt.year().alias("Year"),
        (pl.col("Origin") + pl.lit(" -> ") + pl.col("Dest")).alias("Route"),
        (
            (pl.col("DepDelayMinutes").fill_null(0) > 15) |
            (pl.col("ArrDelayMinutes").fill_null(0) > 15)
        ).alias("IsDelayed")
    ])
    .drop("FlightDate_parsed")
)

# ------------------------------------------------
# Aggregate by Year and Route
# ------------------------------------------------
route_delay_summary = (
    d.group_by(["Year", "Route"])
    .agg([
        pl.len().alias("TotalFlights"),
        pl.col("IsDelayed").sum().alias("DelayedFlights"),
        (pl.col("DepDelayMinutes").fill_null(0) > 15).sum().alias("DepDelayedFlights"),
        (pl.col("ArrDelayMinutes").fill_null(0) > 15).sum().alias("ArrDelayedFlights"),
        pl.col("DepDelayMinutes").fill_null(0).mean().alias("AvgDepDelayMinutes"),
        pl.col("ArrDelayMinutes").fill_null(0).mean().alias("AvgArrDelayMinutes"),
    ])
    .with_columns([
        (pl.col("DelayedFlights") / pl.col("TotalFlights") * 100).alias("DelayRatePct")
    ])
    .sort(["Year", "DelayedFlights"], descending=[False, True])
)

# ------------------------------------------------
# Rank routes within each year
# ------------------------------------------------
ranked_routes = (
    route_delay_summary
    .with_columns([
        pl.col("DelayedFlights")
        .rank(method="dense", descending=True)
        .over("Year")
        .alias("DelayRankWithinYear")
    ])
    .sort(["Year", "DelayRankWithinYear", "Route"])
)

# ------------------------------------------------
# Optional: round numeric columns for readability
# ------------------------------------------------
ranked_routes = ranked_routes.with_columns([
    pl.col("DelayRatePct").round(2),
    pl.col("AvgDepDelayMinutes").round(2),
    pl.col("AvgArrDelayMinutes").round(2),
])

# ------------------------------------------------
# Show full ranked table in Jupyter
# ------------------------------------------------
ranked_routes

shape: (8, 10)

Year	Route	TotalFlights	DelayedFlights	DepDelayedFlights	ArrDelayedFlights	AvgDepDelayMinutes	AvgArrDelayMinutes	DelayRatePct	DelayRankWithinYear
i32	str	u32	u32	u32	u32	f64	f64	f64	u32
2018	"BWI -> ATL"	6880	1365	1056	1123	11.42	11.94	19.84	1
2018	"ATL -> BWI"	6886	1342	1221	1002	12.22	10.76	19.49	2
2018	"BWI -> EWR"	850	319	246	291	22.25	25.25	37.53	3
2018	"EWR -> BWI"	849	197	189	148	16.35	13.28	23.2	4
2019	"BWI -> ATL"	6812	1252	1007	998	10.98	10.79	18.38	1
2019	"ATL -> BWI"	6861	1231	1127	913	10.95	9.12	17.94	2
2019	"BWI -> EWR"	59	27	26	21	29.19	27.49	45.76	3
2019	"EWR -> BWI"	60	20	20	17	19.53	18.03	33.33	4

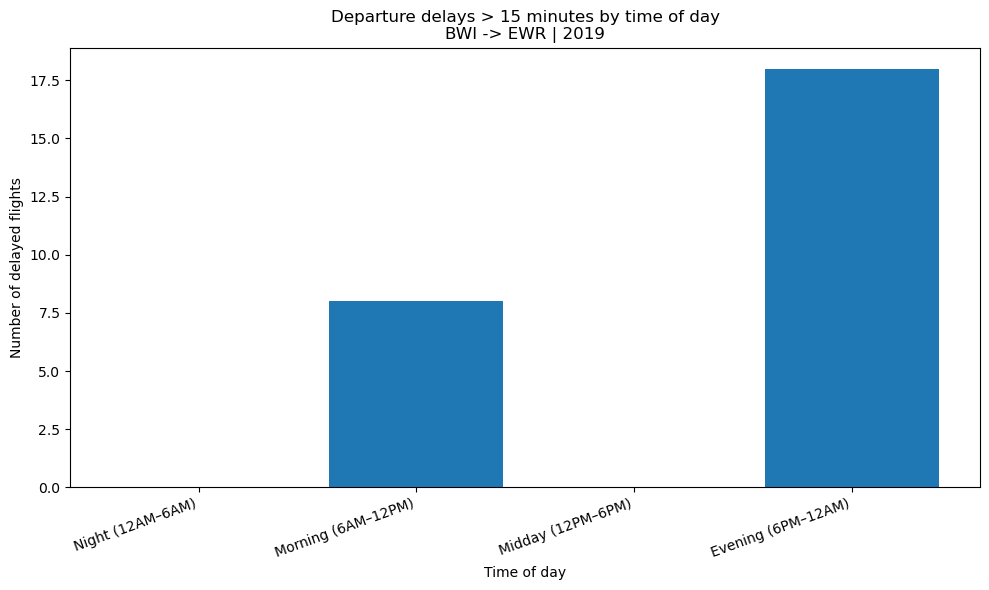

Delays over time of day

import polars as pl
import matplotlib.pyplot as plt

# ------------------------------------------------
# Robust types: CRSDepTime -> hour, DepDelayMinutes -> numeric
# ------------------------------------------------
df2 = df.with_columns([
    # dep_hour from CRSDepTime (handles strings like "0545", ints, floats, blanks)
    (
        pl.col("CRSDepTime")
          .cast(pl.Utf8)
          .str.replace_all(r"[^0-9]", "")
          .replace("", None)
          .cast(pl.Int32)
          .fill_null(0)
          .floordiv(100)
          .cast(pl.Int32)
          .alias("dep_hour")
    ),

    # DepDelayMinutes to float (handles strings/blanks); null if not parseable
    (
        pl.col("DepDelayMinutes")
          .cast(pl.Utf8)
          .str.replace_all(r"[^0-9\.\-]", "")
          .replace("", None)
          .cast(pl.Float64)
          .alias("DepDelayMinutes_num")
    ),
])

# ------------------------------------------------
# Time-of-day labels (readable)
# ------------------------------------------------
df2 = df2.with_columns(
    pl.when(pl.col("dep_hour") < 6)
      .then(pl.lit("Night (12AM–6AM)"))
      .when(pl.col("dep_hour") < 12)
      .then(pl.lit("Morning (6AM–12PM)"))
      .when(pl.col("dep_hour") < 18)
      .then(pl.lit("Midday (12PM–6PM)"))
      .otherwise(pl.lit("Evening (6PM–12AM)"))
      .alias("time_of_day")
)

# ------------------------------------------------
# Delays > 15 minutes distribution across time of day
# ------------------------------------------------
order = ["Night (12AM–6AM)", "Morning (6AM–12PM)", "Midday (12PM–6PM)", "Evening (6PM–12AM)"]

delay_counts = (
    df2.filter(pl.col("DepDelayMinutes_num").is_not_null())
       .filter(pl.col("DepDelayMinutes_num") > 15)
       .group_by("time_of_day")
       .agg(pl.len().alias("count"))
)

# Ensure all categories appear (even if count=0), and in a nice order
delay_counts = (
    pl.DataFrame({"time_of_day": order})
      .join(delay_counts, on="time_of_day", how="left")
      .with_columns(pl.col("count").fill_null(0).cast(pl.Int64))
)

print(delay_counts)

# ------------------------------------------------

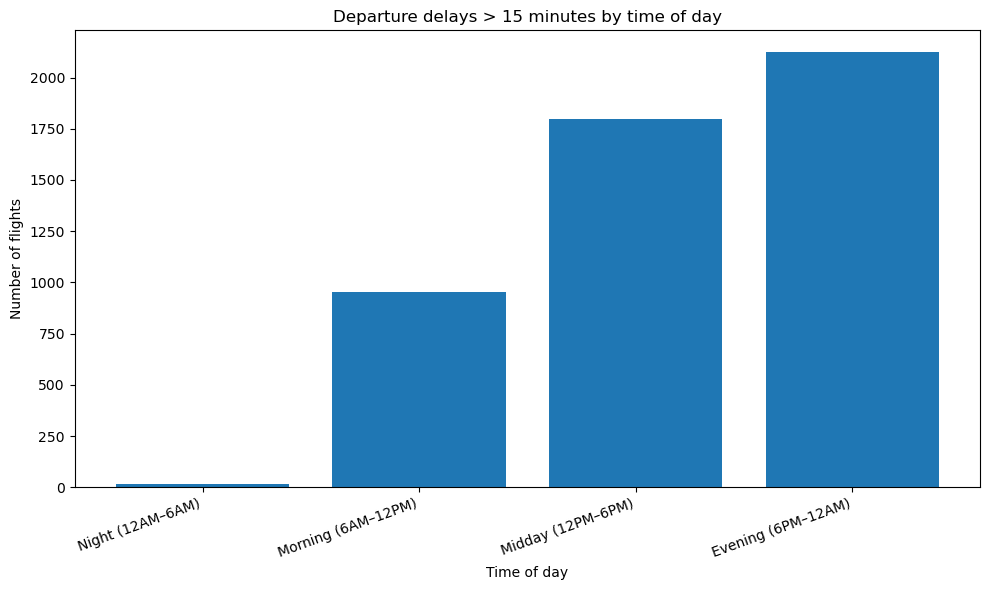

# Plot
# ------------------------------------------------
pdf = delay_counts.to_pandas()

plt.figure(figsize=(10, 6))
plt.bar(pdf["time_of_day"], pdf["count"])
plt.title("Departure delays > 15 minutes by time of day")
plt.xlabel("Time of day")
plt.ylabel("Number of flights")
plt.xticks(rotation=20, ha="right")
plt.tight_layout()
plt.show()

shape: (4, 2)
┌────────────────────┬───────┐
│ time_of_day        ┆ count │
│ ---                ┆ ---   │
│ str                ┆ i64   │
╞════════════════════╪═══════╡
│ Night (12AM–6AM)   ┆ 15    │
│ Morning (6AM–12PM) ┆ 954   │
│ Midday (12PM–6PM)  ┆ 1799  │
│ Evening (6PM–12AM) ┆ 2124  │
└────────────────────┴───────┘

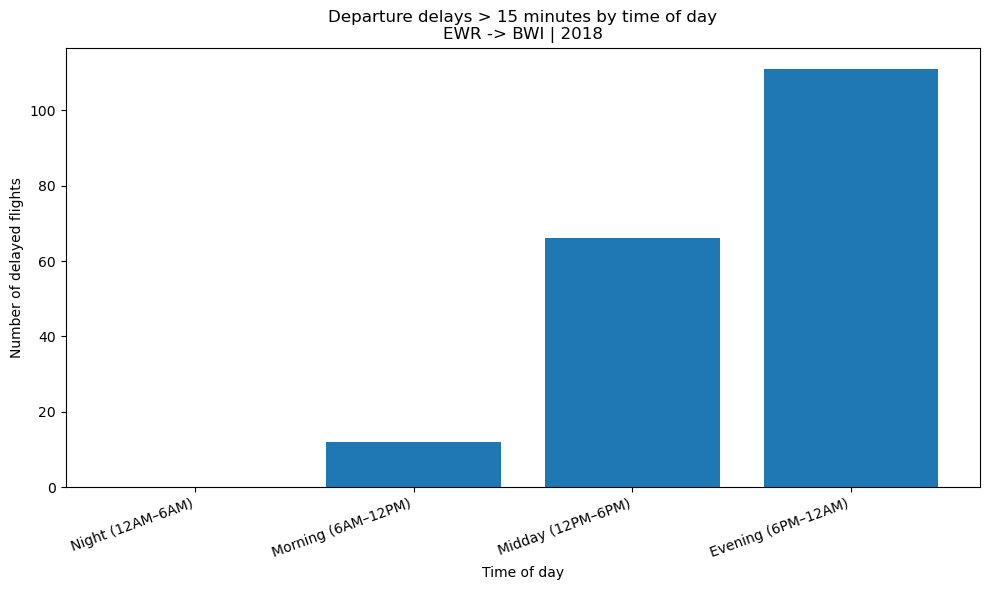

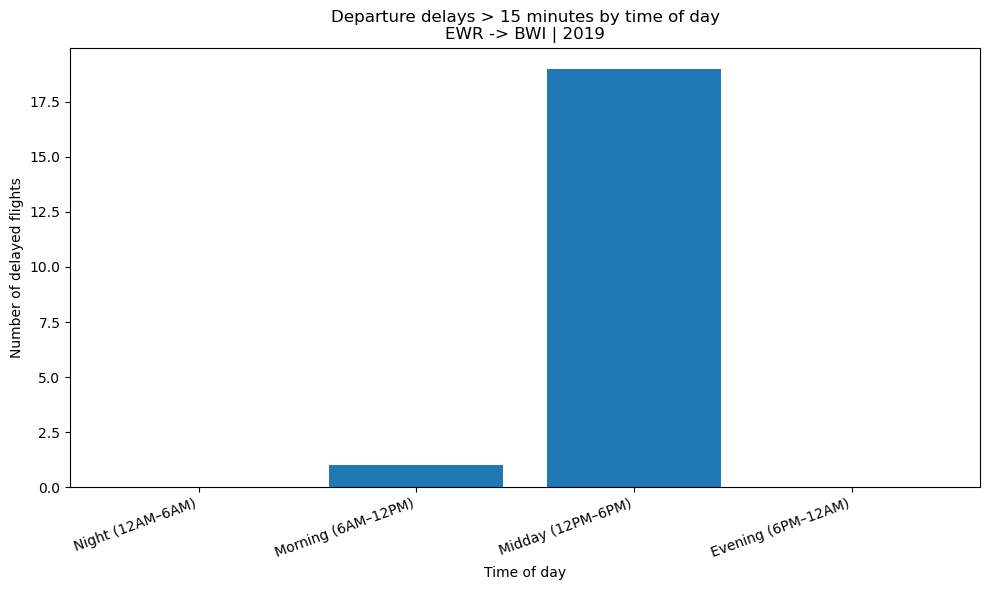

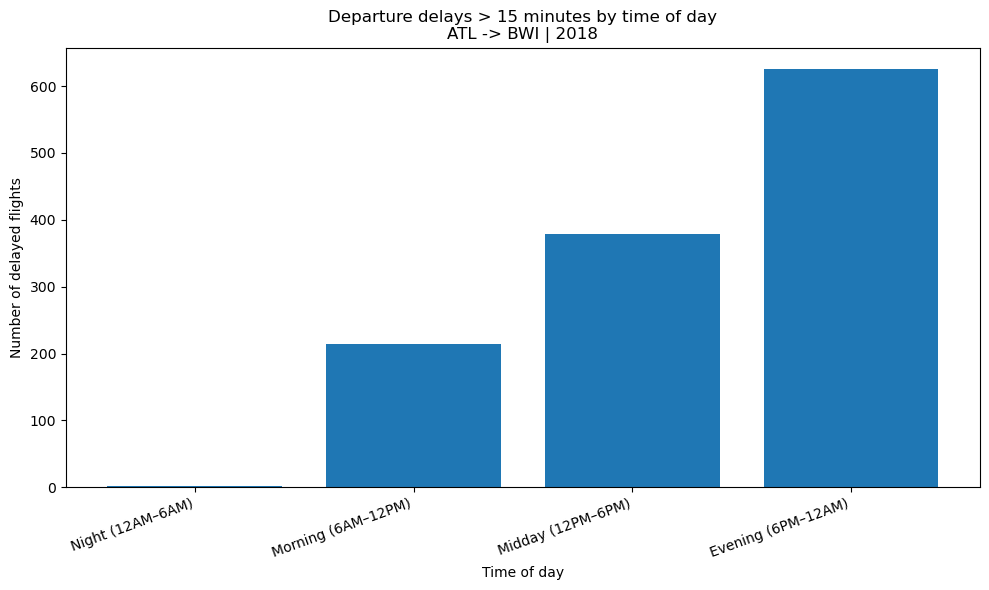

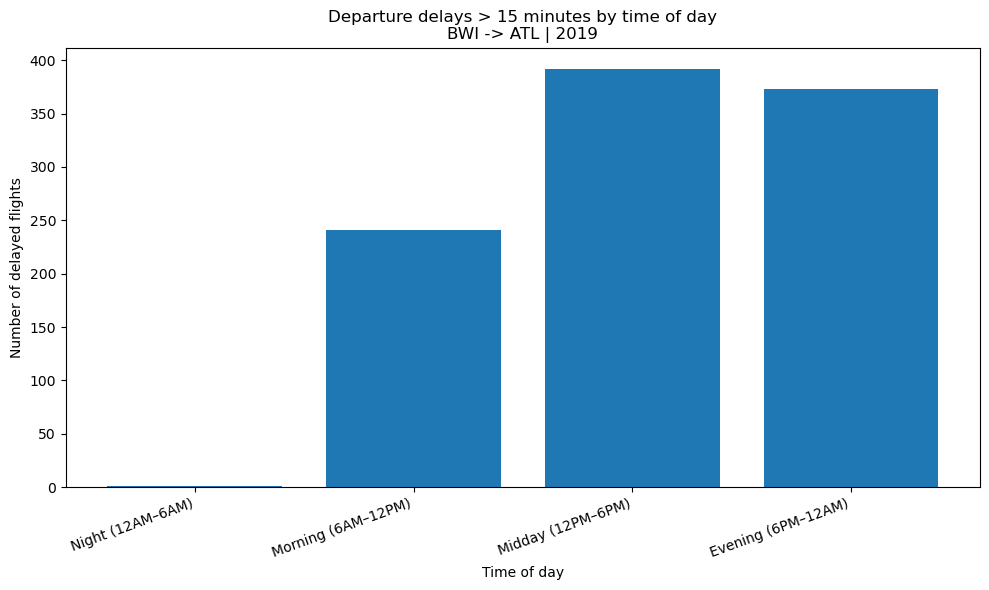

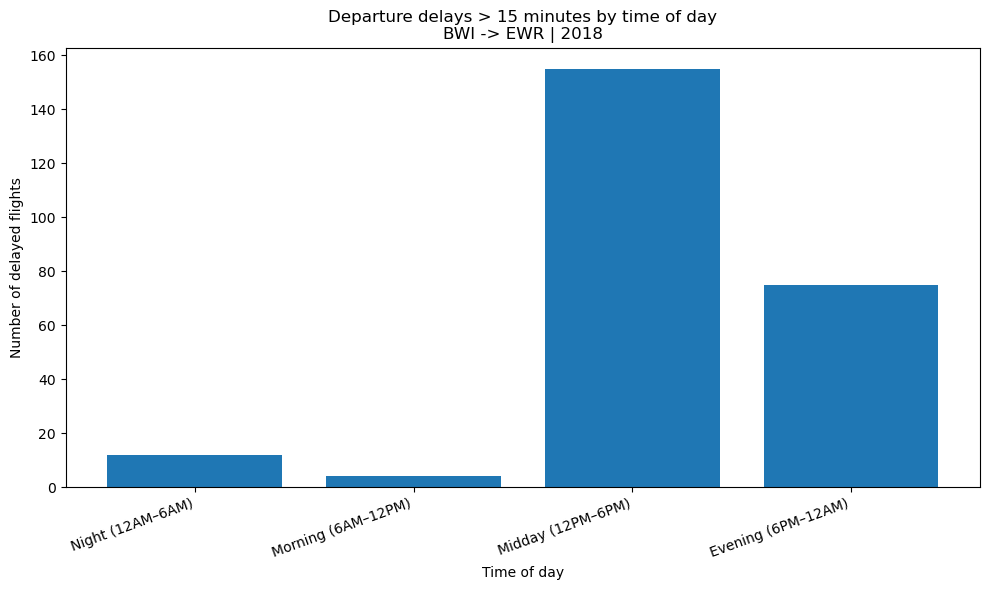

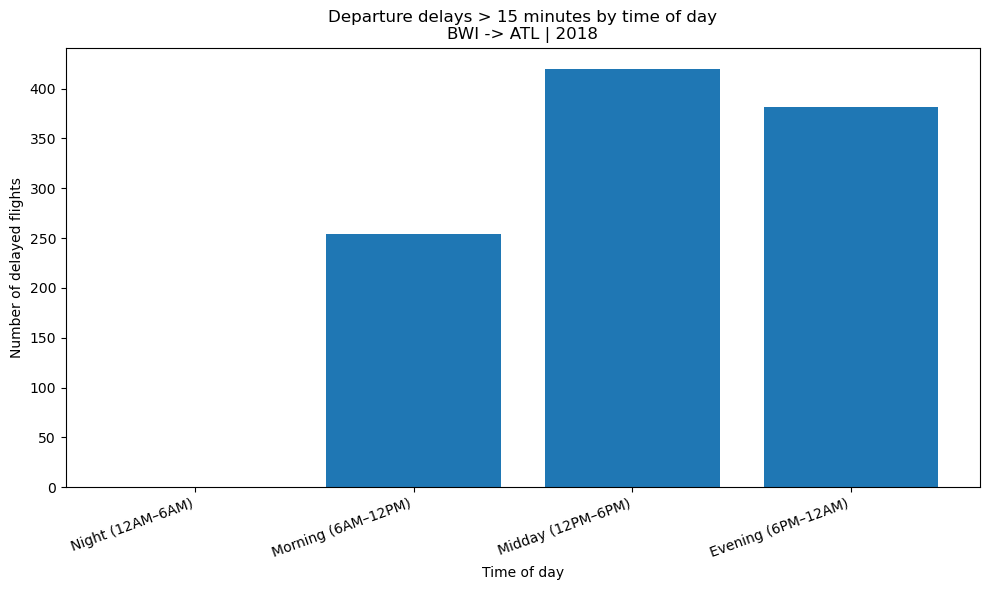

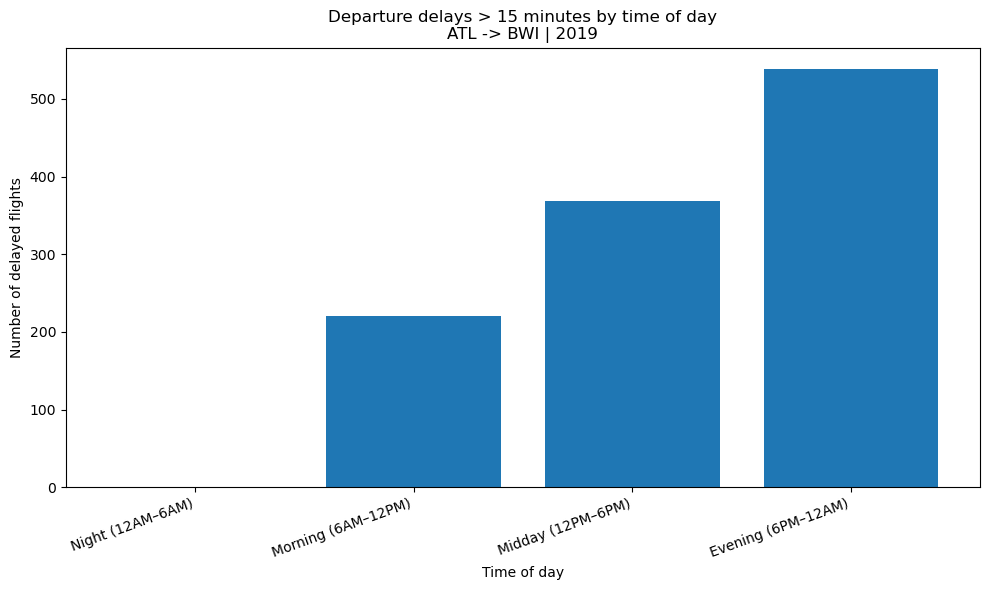

import polars as pl
import matplotlib.pyplot as plt

# ------------------------------------------------
# Robust types:
# - FlightDate -> Year
# - CRSDepTime -> dep_hour
# - DepDelayMinutes -> numeric
# - Route = Origin -> Dest
# ------------------------------------------------
df2 = df.with_columns([
    # Year from FlightDate
    (
        pl.col("FlightDate")
          .cast(pl.Utf8)
          .str.strptime(pl.Date, strict=False)
          .dt.year()
          .alias("Year")
    ),

    # Route label
    (
        pl.col("Origin").cast(pl.Utf8) + pl.lit(" -> ") + pl.col("Dest").cast(pl.Utf8)
    ).alias("Route"),

    # dep_hour from CRSDepTime
    (
        pl.col("CRSDepTime")
          .cast(pl.Utf8)
          .str.replace_all(r"[^0-9]", "")
          .replace("", None)
          .cast(pl.Int32)
          .fill_null(0)
          .floordiv(100)
          .cast(pl.Int32)
          .alias("dep_hour")
    ),

    # DepDelayMinutes numeric
    (
        pl.col("DepDelayMinutes")
          .cast(pl.Utf8)
          .str.replace_all(r"[^0-9\.\-]", "")
          .replace("", None)
          .cast(pl.Float64)
          .alias("DepDelayMinutes_num")
    ),
])

# ------------------------------------------------
# Time-of-day labels
# ------------------------------------------------
df2 = df2.with_columns(
    pl.when(pl.col("dep_hour") < 6)
      .then(pl.lit("Night (12AM–6AM)"))
      .when(pl.col("dep_hour") < 12)
      .then(pl.lit("Morning (6AM–12PM)"))
      .when(pl.col("dep_hour") < 18)
      .then(pl.lit("Midday (12PM–6PM)"))
      .otherwise(pl.lit("Evening (6PM–12AM)"))
      .alias("time_of_day")
)

# ------------------------------------------------
# Ordered categories
# ------------------------------------------------
order = [
    "Night (12AM–6AM)",
    "Morning (6AM–12PM)",
    "Midday (12PM–6PM)",
    "Evening (6PM–12AM)"
]

# ------------------------------------------------
# Filter to delayed departures > 15 min
# ------------------------------------------------
delays = (
    df2.filter(pl.col("Year").is_not_null())
       .filter(pl.col("Route").is_not_null())
       .filter(pl.col("DepDelayMinutes_num").is_not_null())
       .filter(pl.col("DepDelayMinutes_num") > 15)
)

# ------------------------------------------------
# Count delays by Year + Route + time_of_day
# ------------------------------------------------
delay_counts = (
    delays.group_by(["Year", "Route", "time_of_day"])
          .agg(pl.len().alias("count"))
)

print(delay_counts)

# ------------------------------------------------
# Get all Year + Route combos
# ------------------------------------------------
year_route_pairs = (
    delays.select(["Year", "Route"])
          .unique()
          .sort(["Year", "Route"])
          .to_dicts()
)

# ------------------------------------------------
# Plot one chart per Year + Route
# ------------------------------------------------
for pair in year_route_pairs:
    year = pair["Year"]
    route = pair["Route"]

    subset = (
        delay_counts
        .filter((pl.col("Year") == year) & (pl.col("Route") == route))
        .select(["time_of_day", "count"])
    )

    # ensure all four time buckets appear
    plot_df = (
        pl.DataFrame({"time_of_day": order})
          .join(subset, on="time_of_day", how="left")
          .with_columns(pl.col("count").fill_null(0).cast(pl.Int64))
    )

    pdf = plot_df.to_pandas()

    plt.figure(figsize=(10, 6))
    plt.bar(pdf["time_of_day"], pdf["count"])
    plt.title(f"Departure delays > 15 minutes by time of day\n{route} | {year}")
    plt.xlabel("Time of day")
    plt.ylabel("Number of delayed flights")
    plt.xticks(rotation=20, ha="right")
    plt.tight_layout()
    plt.show()

shape: (25, 4)
┌──────┬────────────┬────────────────────┬───────┐
│ Year ┆ Route      ┆ time_of_day        ┆ count │
│ ---  ┆ ---        ┆ ---                ┆ ---   │
│ i32  ┆ str        ┆ str                ┆ u32   │
╞══════╪════════════╪════════════════════╪═══════╡
│ 2019 ┆ BWI -> EWR ┆ Evening (6PM–12AM) ┆ 18    │
│ 2019 ┆ BWI -> ATL ┆ Night (12AM–6AM)   ┆ 1     │
│ 2019 ┆ ATL -> BWI ┆ Evening (6PM–12AM) ┆ 539   │
│ 2018 ┆ ATL -> BWI ┆ Evening (6PM–12AM) ┆ 626   │
│ 2018 ┆ ATL -> BWI ┆ Midday (12PM–6PM)  ┆ 379   │
│ …    ┆ …          ┆ …                  ┆ …     │
│ 2019 ┆ BWI -> ATL ┆ Morning (6AM–12PM) ┆ 241   │
│ 2018 ┆ EWR -> BWI ┆ Midday (12PM–6PM)  ┆ 66    │
│ 2018 ┆ BWI -> EWR ┆ Evening (6PM–12AM) ┆ 75    │
│ 2018 ┆ BWI -> ATL ┆ Midday (12PM–6PM)  ┆ 420   │
│ 2018 ┆ BWI -> EWR ┆ Morning (6AM–12PM) ┆ 4     │
└──────┴────────────┴────────────────────┴───────┘

Delays by month

import polars as pl
import matplotlib.pyplot as plt

# ------------------------------------------------
# Convert FlightDate to date and extract month
# ------------------------------------------------
df2 = df.with_columns(
    pl.col("FlightDate")
      .cast(pl.Utf8)
      .str.to_date(strict=False)
      .dt.month()
      .alias("month")
)

# ------------------------------------------------
# Ensure DepDelayMinutes is numeric
# ------------------------------------------------
df2 = df2.with_columns(
    pl.col("DepDelayMinutes")
      .cast(pl.Utf8)
      .str.replace_all(r"[^0-9\.\-]", "")
      .replace("", None)
      .cast(pl.Float64)
      .alias("delay")
)

# ------------------------------------------------
# Filter delays > 15 minutes and count by month
# ------------------------------------------------
delay_month = (
    df2.filter(pl.col("delay") > 15)
       .group_by("month")
       .count()
       .sort("month")
)

print(delay_month)

# ------------------------------------------------
# Convert to pandas for plotting
# ------------------------------------------------
plot_df = delay_month.to_pandas()

# Month labels
month_labels = [
    "Jan","Feb","Mar","Apr","May","Jun",
    "Jul","Aug","Sep","Oct","Nov","Dec"
]

# ------------------------------------------------
# Plot distribution
# ------------------------------------------------
plt.figure(figsize=(12,6))

plt.bar(
    plot_df["month"],
    plot_df["count"]
)

plt.xticks(range(1,13), month_labels)

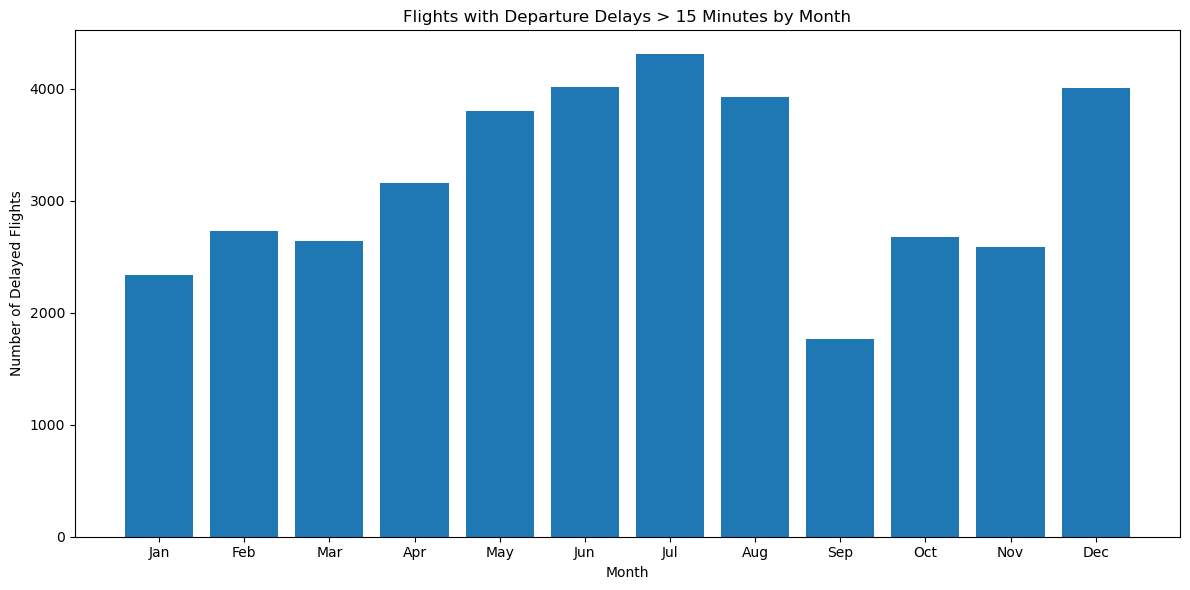

plt.title("Flights with Departure Delays > 15 Minutes by Month")
plt.xlabel("Month")
plt.ylabel("Number of Delayed Flights")

plt.tight_layout()
plt.show()

/tmp/ipykernel_15558/1624462220.py:33: DeprecationWarning: `GroupBy.count` was renamed; use `GroupBy.len` instead
  .count()

shape: (12, 2)
┌───────┬───────┐
│ month ┆ count │
│ ---   ┆ ---   │
│ i8    ┆ u32   │
╞═══════╪═══════╡
│ 1     ┆ 2337  │
│ 2     ┆ 2730  │
│ 3     ┆ 2636  │
│ 4     ┆ 3155  │
│ 5     ┆ 3801  │
│ …     ┆ …     │
│ 8     ┆ 3922  │
│ 9     ┆ 1766  │
│ 10    ┆ 2679  │
│ 11    ┆ 2587  │
│ 12    ┆ 4008  │
└───────┴───────┘

import matplotlib.pyplot as plt

plot_df = (
    df.select("DepDelayMinutes")
      .drop_nulls()
      .to_pandas()
)

plt.figure(figsize=(10,5))
plt.hist(plot_df["DepDelayMinutes"], bins=80)

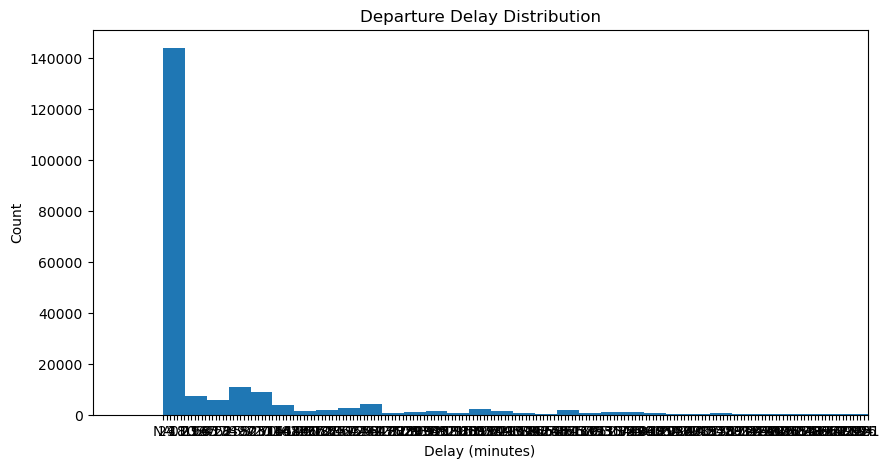

plt.title("Departure Delay Distribution")
plt.xlabel("Delay (minutes)")
plt.ylabel("Count")
plt.xlim(-20, 200)
plt.show()

df_clean = (
    df.with_columns(
        pl.col("FlightDate").str.to_date("%Y-%m-%d")
    )
    .sort("FlightDate")   # ← REQUIRED
)

# ---------------------------------------------
# WEEKLY AGGREGATION
# ---------------------------------------------
weekly_flights = (
    df_clean.group_by_dynamic(
        index_column="FlightDate",
        every="1w",
        period="1w"
    )
    .agg(pl.len().alias("num_flights"))
)

# ---------------------------------------------
# PLOT
# ---------------------------------------------
plt.figure(figsize=(14,6))
plt.plot(
    weekly_flights["FlightDate"],
    weekly_flights["num_flights"]
)

plt.title("Total Flights per Week (2019)")
plt.xlabel("Week")
plt.ylabel("Number of Flights")
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

origin_state_counts = (
    df.group_by("OriginState")
      .agg(pl.len().alias("num_flights"))
      .sort("num_flights", descending=True)
      .head(20)   # top states for readability
)

# ---------------------------------------------
# PLOT
# ---------------------------------------------
plt.figure(figsize=(10,6))
plt.barh(
    origin_state_counts["OriginState"],
    origin_state_counts["num_flights"]
)

plt.gca().invert_yaxis()  # highest on top
plt.title("Top Origin States by Number of Flights (2019)")
plt.xlabel("Number of Flights")
plt.ylabel("State")
plt.tight_layout()
plt.show()

---------------------------------------------------------------------------
ColumnNotFoundError                       Traceback (most recent call last)
Cell In[49], line 3
      1 origin_state_counts = (
      2     df.group_by("OriginState")
----> 3       .agg(pl.len().alias("num_flights"))
      4       .sort("num_flights", descending=True)
      5       .head(20)   # top states for readability
      6 )
      8 # ---------------------------------------------
      9 # PLOT
     10 # ---------------------------------------------
     11 plt.figure(figsize=(10,6))

File ~/anaconda3/envs/or568_ml_project/lib/python3.11/site-packages/polars/dataframe/group_by.py:298, in GroupBy.agg(self, *aggs, **named_aggs)
    195 """
    196 Compute aggregations for each group of a group by operation.
    197
   (...)    291 └─────┴───────┴────────────────┘
    292 """
    293 from polars.lazyframe.opt_flags import QueryOptFlags
    295 return (
    296     self._lgb()
    297     .agg(*aggs, **named_aggs)
--> 298     .collect(optimizations=QueryOptFlags.none())
    299 )

File ~/anaconda3/envs/or568_ml_project/lib/python3.11/site-packages/polars/_utils/deprecation.py:97, in deprecate_streaming_parameter.<locals>.decorate.<locals>.wrapper(*args, **kwargs)
     93         kwargs["engine"] = "in-memory"
     95     del kwargs["streaming"]
---> 97 return function(*args, **kwargs)

File ~/anaconda3/envs/or568_ml_project/lib/python3.11/site-packages/polars/lazyframe/opt_flags.py:326, in forward_old_opt_flags.<locals>.decorate.<locals>.wrapper(*args, **kwargs)
    323         optflags = cb(optflags, kwargs.pop(key))  # type: ignore[no-untyped-call,unused-ignore]
    325 kwargs["optimizations"] = optflags
--> 326 return function(*args, **kwargs)

File ~/anaconda3/envs/or568_ml_project/lib/python3.11/site-packages/polars/lazyframe/frame.py:2440, in LazyFrame.collect(self, type_coercion, predicate_pushdown, projection_pushdown, simplify_expression, slice_pushdown, comm_subplan_elim, comm_subexpr_elim, cluster_with_columns, collapse_joins, no_optimization, engine, background, optimizations, **_kwargs)
   2438 # Only for testing purposes
   2439 callback = _kwargs.get("post_opt_callback", callback)
-> 2440 return wrap_df(ldf.collect(engine, callback))

ColumnNotFoundError: unable to find column "OriginState"; valid columns: ["FlightDate", "Reporting_Airline", "Origin", "Dest", "Tail_Number", "DepDelay", "ArrDelay", "DepDelayMinutes", "ArrDelayMinutes", "Cancelled", "Diverted", "dep_ts_sched", "dep_ts_actual", "arr_ts_sched", "arr_ts_actual", "dep_weather_severity", "arr_weather_severity", "dep_tmpf", "dep_vsby", "dep_sknt", "dep_gust", "dep_p01i", "dep_skyl1", "arr_tmpf", "arr_vsby", "arr_sknt", "arr_gust", "arr_p01i", "arr_skyl1", "dep_wxcodes", "dep_wx_intensity", "dep_wx_has_ra", "dep_wx_has_ts", "dep_wx_has_sn", "dep_wx_has_fg", "dep_wx_has_br", "dep_wx_has_hz", "arr_wxcodes", "arr_wx_intensity", "arr_wx_has_ra", "arr_wx_has_ts", "arr_wx_has_sn", "arr_wx_has_fg", "arr_wx_has_br", "arr_wx_has_hz"]

Resolved plan until failure:

    ---> FAILED HERE RESOLVING 'sink' <---
DF ["FlightDate", "Reporting_Airline", "Origin", "Dest", ...]; PROJECT */45 COLUMNS

def savefig(name: str):
    path = OUT_DIR / f"{name}.png"
    plt.tight_layout()
    plt.savefig(path, dpi=150)
    print("Saved:", path)
    plt.show()

def to_float_np(series: pl.Series):
    return series.cast(pl.Float64, strict=False).drop_nulls().to_numpy()

1) Arrival Delay Distribution (minutes)

if "ArrDelayMinutes" in df.columns:
    arr = to_float_np(df["ArrDelayMinutes"])
    plt.figure(figsize=(8,5))
    plt.hist(arr, bins=60)
    plt.title("Arrival Delay Distribution (minutes)")
    plt.xlabel("Delay Minutes")
    plt.ylabel("Frequency")
else:
    print("ArrDelayMinutes not found")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[14], line 2
      1 if "ArrDelayMinutes" in df.columns:
----> 2     arr = to_float_np(df["ArrDelayMinutes"])
      3     plt.figure(figsize=(8,5))
      4     plt.hist(arr, bins=60)

NameError: name 'to_float_np' is not defined

2) Delay Classification View (≥ 15 minutes)

if "ArrDelayMinutes" in df.columns:
    delayed = (
        df.select(
            (pl.col("ArrDelayMinutes").cast(pl.Float64, strict=False).fill_null(0) >= 15)
            .alias("Delayed15")
        )
        .group_by("Delayed15")
        .agg(pl.len().alias("count"))
        .sort("Delayed15")
    )

    plt.figure(figsize=(6,4))
    plt.bar(delayed["Delayed15"].cast(pl.Utf8).to_list(), delayed["count"].to_list())

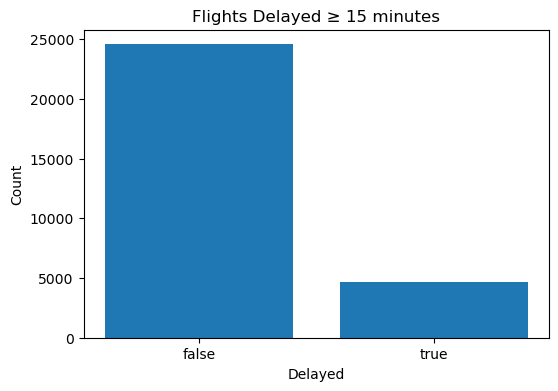

    plt.title("Flights Delayed ≥ 15 minutes")
    plt.xlabel("Delayed")
    plt.ylabel("Count")
else:
    print("ArrDelayMinutes not found")

3) Top Airlines by Mean Arrival Delay

if {"Reporting_Airline", "ArrDelayMinutes"}.issubset(set(df.columns)):
    airline_stats = (
        df.lazy()
        .group_by("Reporting_Airline")
        .agg(pl.col("ArrDelayMinutes").cast(pl.Float64, strict=False).mean().alias("mean_delay"))
        .sort("mean_delay", descending=True)
        .limit(15)
        .collect()
    )

    plt.figure(figsize=(9,5))
    plt.bar(airline_stats["Reporting_Airline"].to_list(), airline_stats["mean_delay"].to_list())
    plt.xticks(rotation=45, ha="right")
    plt.title("Top Airlines by Mean Arrival Delay")
    plt.ylabel("Mean Delay (min)")
    savefig("carrier_mean_delay")
else:
    print("Reporting_Airline or ArrDelayMinutes not found")

Reporting_Airline or ArrDelayMinutes not found

4) Departure Weather Severity vs Arrival Delay

if {"dep_weather_severity", "ArrDelayMinutes"}.issubset(set(df.columns)):
    sample = (
        df.select([
            pl.col("dep_weather_severity").cast(pl.Float64, strict=False),
            pl.col("ArrDelayMinutes").cast(pl.Float64, strict=False),
        ])
        .drop_nulls()
        .sample(min(10_000, df.height), seed=0)
    )

    plt.figure(figsize=(7,5))
    plt.scatter(sample["dep_weather_severity"].to_list(), sample["ArrDelayMinutes"].to_list(), alpha=0.3)
    plt.title("Departure Weather Severity vs Arrival Delay")
    plt.xlabel("Departure Weather Severity")
    plt.ylabel("Arrival Delay (min)")
    savefig("weather_vs_delay")
else:
    print("dep_weather_severity or ArrDelayMinutes not found")

Saved: /home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/ml-shared-notebooks/notebooks/jon/python/plots/weather_vs_delay.png

5) Mean Arrival Delay vs Weather Severity Bucket

if {"dep_weather_severity", "ArrDelayMinutes"}.issubset(set(df.columns)):
    bucketed = (
        df.lazy()
        .with_columns(pl.col("dep_weather_severity").cast(pl.Float64, strict=False).floor().alias("wx_bucket"))
        .group_by("wx_bucket")
        .agg(pl.col("ArrDelayMinutes").cast(pl.Float64, strict=False).mean().alias("mean_delay"))
        .sort("wx_bucket")
        .collect()
    )

    plt.figure(figsize=(8,5))
    plt.plot(bucketed["wx_bucket"].to_list(), bucketed["mean_delay"].to_list(), marker="o")

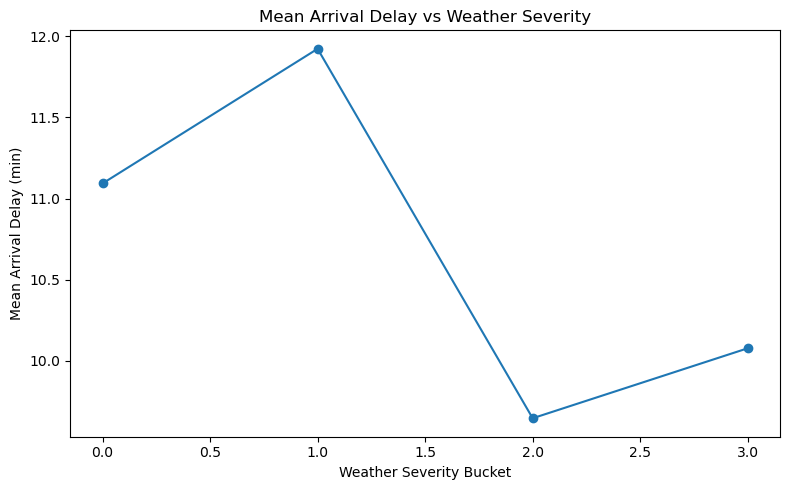

    plt.title("Mean Arrival Delay vs Weather Severity")
    plt.xlabel("Weather Severity Bucket")
    plt.ylabel("Mean Arrival Delay (min)")
    savefig("delay_vs_weather_bucket")
else:
    print("dep_weather_severity or ArrDelayMinutes not found")

Saved: /home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/ml-shared-notebooks/notebooks/jon/python/plots/delay_vs_weather_bucket.png

6) Destinations with Highest Mean Arrival Delay

if {"Dest", "ArrDelayMinutes"}.issubset(set(df.columns)):
    top_dest = (
        df.lazy()
        .group_by("Dest")
        .agg(pl.col("ArrDelayMinutes").cast(pl.Float64, strict=False).mean().alias("mean_delay"))
        .sort("mean_delay", descending=True)
        .limit(15)
        .collect()
    )

    plt.figure(figsize=(9,5))
    plt.bar(top_dest["Dest"].to_list(), top_dest["mean_delay"].to_list())
    plt.xticks(rotation=45, ha="right")

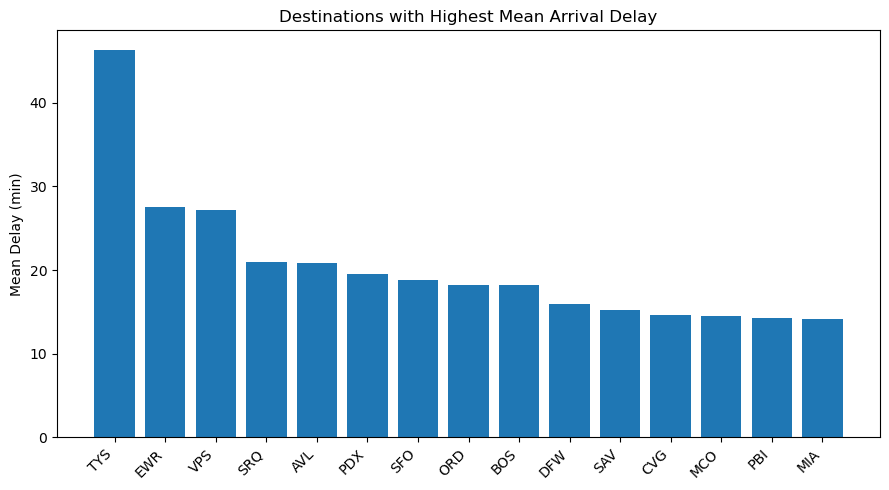

    plt.title("Destinations with Highest Mean Arrival Delay")
    plt.ylabel("Mean Delay (min)")
    savefig("destinations_delay")
else:
    print("Dest or ArrDelayMinutes not found")

Saved: /home/jon/Documents/grad_school/OR568/project/OR568_ML_Project/ml-shared-notebooks/notebooks/jon/python/plots/destinations_delay.png

Done

Plots are saved to the plots/ directory as PNG files.
