# --- Drop-in demo: flight-level features -> Logistic Regression + Random Forest + plots ---
from pathlib import Path
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import (
accuracy_score,
ConfusionMatrixDisplay,
RocCurveDisplay,
)
# ----------------------------
# 1) Load data
# ----------------------------
BASE_DIR = Path.cwd()
file_path = BASE_DIR / ".." / ".." / "data" / "iad_dca_states_smoketest.parquet"
df = pd.read_parquet(file_path)
# Ensure timestamp is datetime (UTC)
if "snapshot_time" not in df.columns:
raise ValueError(f"'snapshot_time' not found in columns: {list(df.columns)}")
df["snapshot_time"] = pd.to_datetime(df["snapshot_time"], utc=True)
# Basic cleaning (dedupe by aircraft+time, sort)
df = (
df.sort_values(["icao24", "snapshot_time"])
.drop_duplicates(subset=["icao24", "snapshot_time"])
)
# Optional: filter out invalid values if columns exist
for col in ["velocity", "geo_altitude"]:
if col in df.columns:
df = df[df[col].notna()]
if "velocity" in df.columns:
df = df[df["velocity"] >= 0]
if "geo_altitude" in df.columns:
df = df[df["geo_altitude"] >= 0]
# ----------------------------
# 2) Build flight-level features (your requested approach)
# ----------------------------
required_cols = {"icao24", "velocity", "geo_altitude", "vertical_rate"}
missing = required_cols - set(df.columns)
if missing:
raise ValueError(f"Missing required columns for feature build: {missing}")
flight_features = df.groupby("icao24").agg({
"velocity": ["mean", "max", "std"],
"geo_altitude": ["mean", "max"],
"vertical_rate": ["mean", "std"],
})
# Flatten columns: ("velocity","mean") -> "velocity_mean"
flight_features.columns = ["_".join(col) for col in flight_features.columns]
# Drop aircraft with insufficient samples (std becomes NaN if only 1 point)
flight_features = flight_features.dropna().copy()
# ----------------------------
# 3) Create a demo target label (replace with your real label later)
# Example: "high_altitude" if mean geo_altitude > median
# ----------------------------
threshold = flight_features["geo_altitude_mean"].median()
flight_features["high_altitude"] = (flight_features["geo_altitude_mean"] > threshold).astype(int)
X = flight_features.drop(columns=["high_altitude"])
y = flight_features["high_altitude"]
# ----------------------------
# 4) Train/test split
# ----------------------------
X_train, X_test, y_train, y_test = train_test_split(
X, y,
test_size=0.30,
random_state=42,
stratify=y
)
# ----------------------------
# 5) Models
# ----------------------------
# Logistic Regression (scaled)
log_model = Pipeline([
("scaler", StandardScaler()),
("model", LogisticRegression(max_iter=2000))
])
# Random Forest (no scaling needed)
rf_model = RandomForestClassifier(
n_estimators=300,
max_depth=8,
random_state=42,
n_jobs=-1
)
log_model.fit(X_train, y_train)
rf_model.fit(X_train, y_train)
# ----------------------------
# 6) Quick metrics
# ----------------------------
log_pred = log_model.predict(X_test)
rf_pred = rf_model.predict(X_test)
print("\n--- Accuracy ---")
print("Logistic Regression:", round(accuracy_score(y_test, log_pred), 4))
print("Random Forest :", round(accuracy_score(y_test, rf_pred), 4))
# ----------------------------

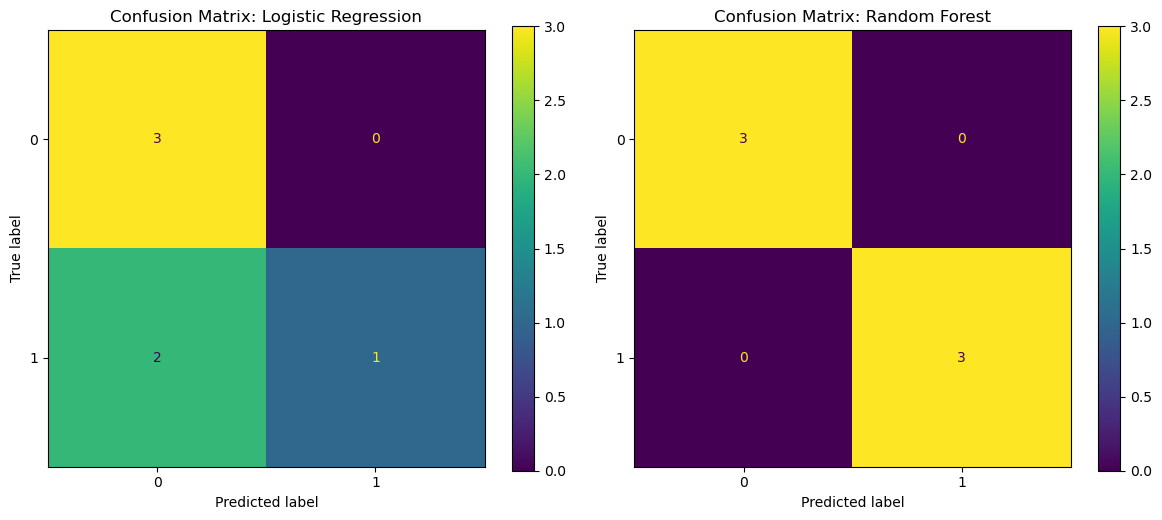

# 7) Plots: Confusion Matrices
# ----------------------------
fig, ax = plt.subplots(1, 2, figsize=(12, 5))
ConfusionMatrixDisplay.from_estimator(log_model, X_test, y_test, ax=ax[0])
ax[0].set_title("Confusion Matrix: Logistic Regression")
ConfusionMatrixDisplay.from_estimator(rf_model, X_test, y_test, ax=ax[1])
ax[1].set_title("Confusion Matrix: Random Forest")
plt.tight_layout()
plt.show()
# ----------------------------
# 8) Plots: ROC Curves
# ----------------------------
plt.figure(figsize=(8, 6))
RocCurveDisplay.from_estimator(log_model, X_test, y_test, name="Logistic Regression")
RocCurveDisplay.from_estimator(rf_model, X_test, y_test, name="Random Forest")
plt.title("ROC Curve Comparison")
plt.tight_layout()
plt.show()
# ----------------------------

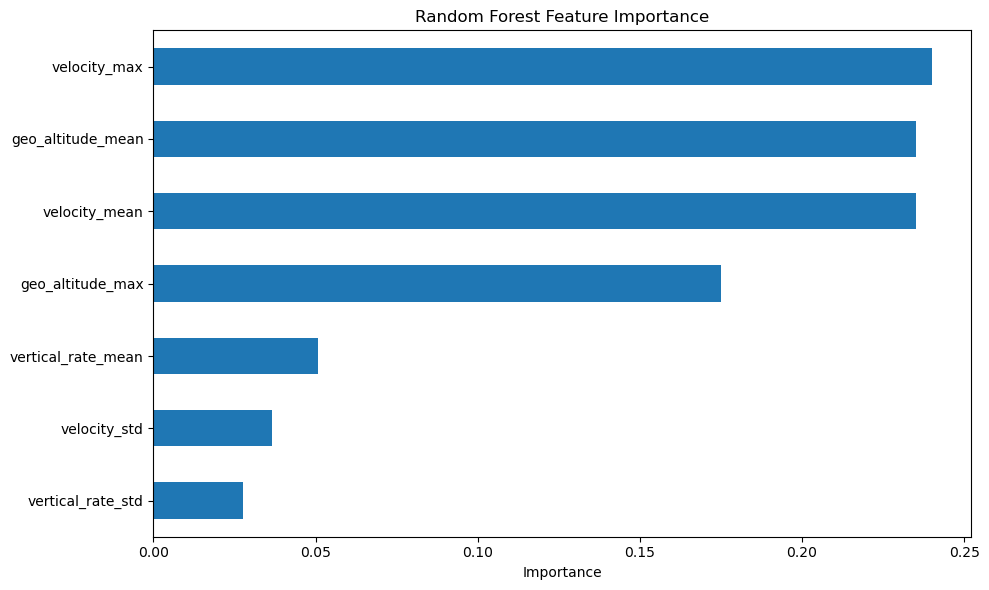

# 9) Plot: Random Forest Feature Importance
# ----------------------------
importances = pd.Series(rf_model.feature_importances_, index=X.columns).sort_values()
plt.figure(figsize=(10, 6))
importances.plot(kind="barh")
plt.title("Random Forest Feature Importance")
plt.xlabel("Importance")
plt.tight_layout()
plt.show()
# ----------------------------
# 10) Optional: Logistic Regression coefficients (interpretability)
# ----------------------------
coef = pd.Series(log_model.named_steps["model"].coef_[0], index=X.columns).sort_values()
plt.figure(figsize=(10, 6))
coef.plot(kind="barh")
plt.title("Logistic Regression Coefficients (scaled features)")
plt.xlabel("Coefficient")
plt.tight_layout()
plt.show()
print("\nTarget definition used for demo:")
print(f"high_altitude = 1 if geo_altitude_mean > median ({threshold:.2f}), else 0")
